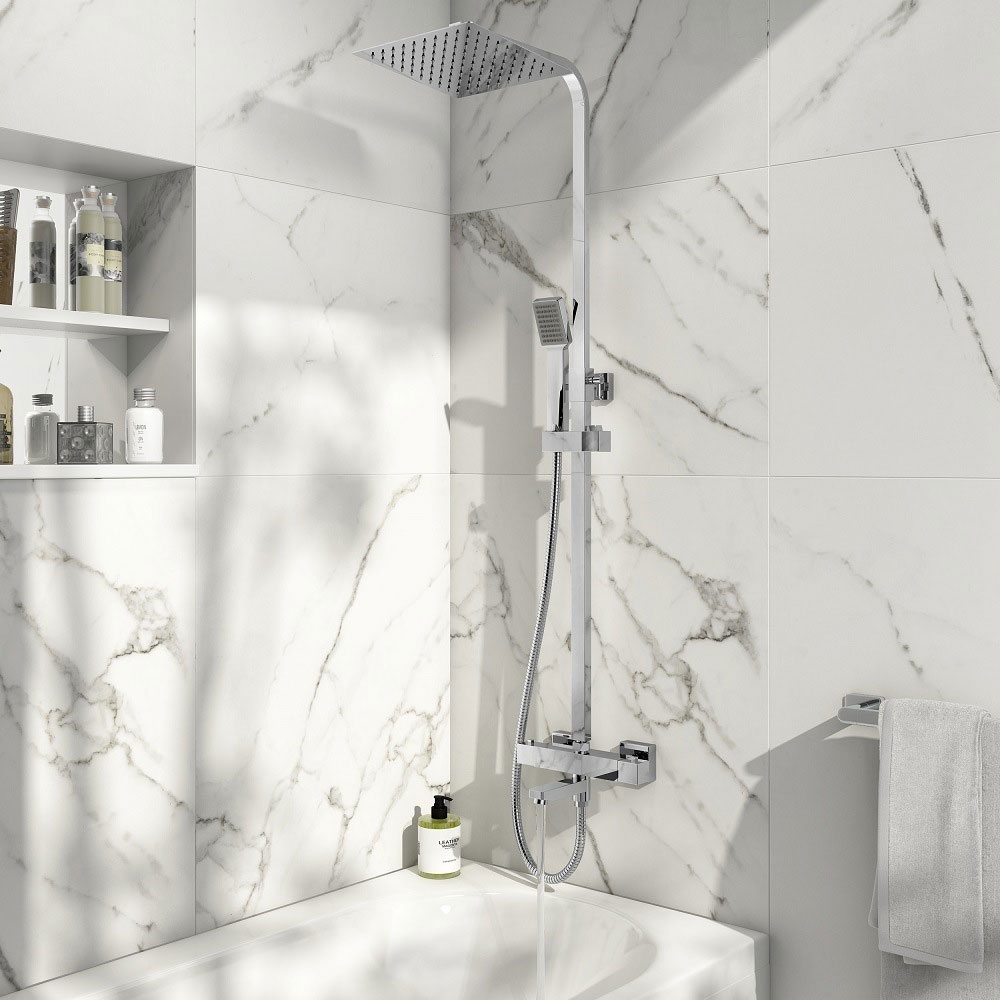

Bloc Square Rigid Riser Shower with Bath Filler

Product Description

* 200mm Ultra thin solid metal fixed shower head

* Easy clean soft rubber nozzles on main shower and headset

* Telescopic riser rail (adjustable after installation)

* Chrome plated brass body thermostatic valve

* Brass thermostatic cartridge

* Multi - function shower handset with height adjustable holder

Specification

General Specification:

Construction Material: Brass / Plastic / Stainless Steel
Installation Type: Wall Mounted
Colour / Finish: Chrome

Tap / Shower Specification:

WRAS Approved: Yes
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of Tap Holes Required: N/a
Handle Type: Square
Swivel Spout: No
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Tap Hole Diameter (mm): N/a
Tap Type Description: Exposed Bar Valve with Bath Filler
Includes Waste: No
Valve / Cartridge Type: Thermostatic & Quarter Turn Cartridge
Cartridge Spare Code: 0

Flow Rates:

0.2bar (l/min): 2.5
0.5bar (l/min): 9.2
1bar (l/min): 14
2bar (l/min): 20
3bar (l/min): 24.8

Showering Specification:

Anti-Scald: Yes
Shower Diverter Function: Yes
Number of Outlets: 3
Thermostatic Temperature Control: Yes
Cool Touch: No
Shower Handset Functions: 1
Minimum Working Pressure: 0.5
Maximum Working Pressure: 5
Shape: Square
Pipe Centres (mm): 150
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Adjustable: Yes
Adjustment (mm): 900-1470
Handle Type: Square

Spares Codes:

Diverter Spares: 0
Thermostatic Cartridge Spares: 0

Product Transportation

Barcode: 5060713723226
Country of origin: CH
Commodity code: 8481809000

Product Measurements:

Product Weight (KG): 4.98
Product Width (mm): 261
Product Height (mm): 1175
Product Depth (mm): 330
Product Length (mm): 193.5

Primary Packed Measurements:

Packaged Weight: 5.5
Packed Length: 850
Packed Width: 360
Packed Height: 120

Compliance DOP

HBDOC074 & HBDOC075
