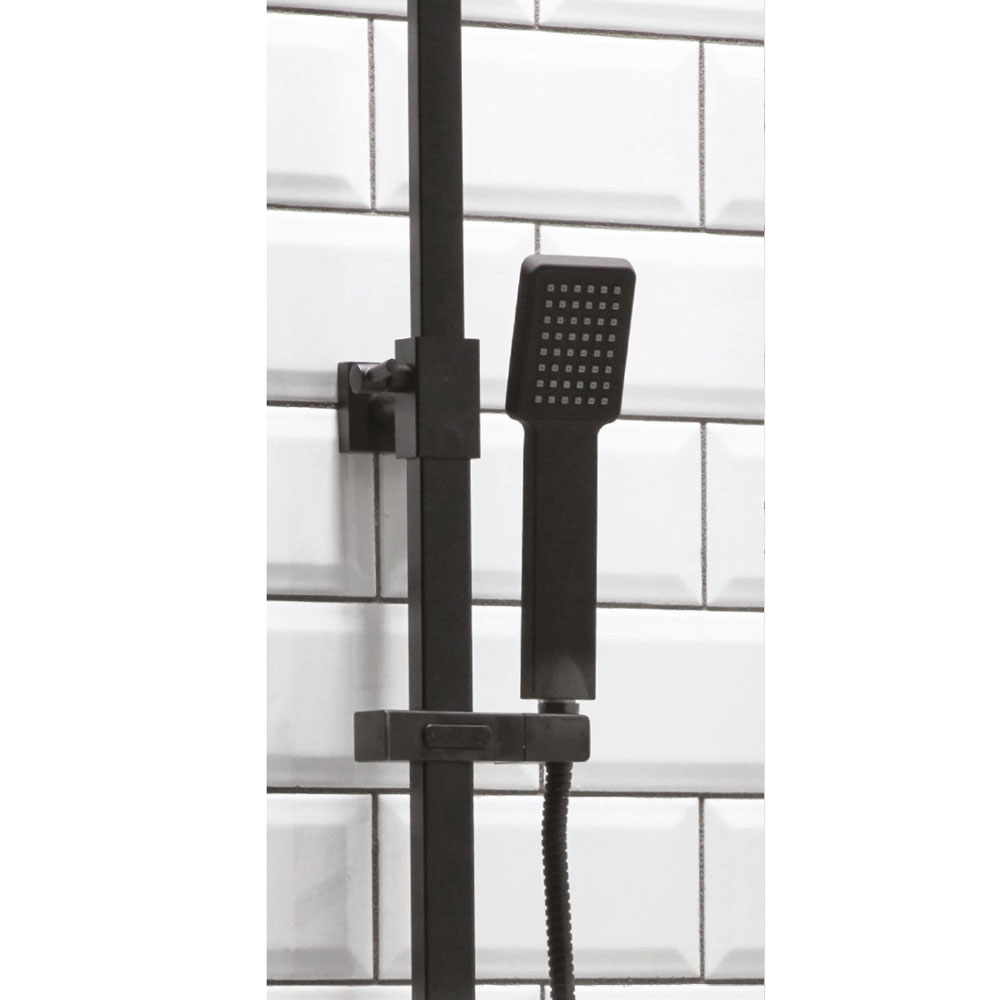

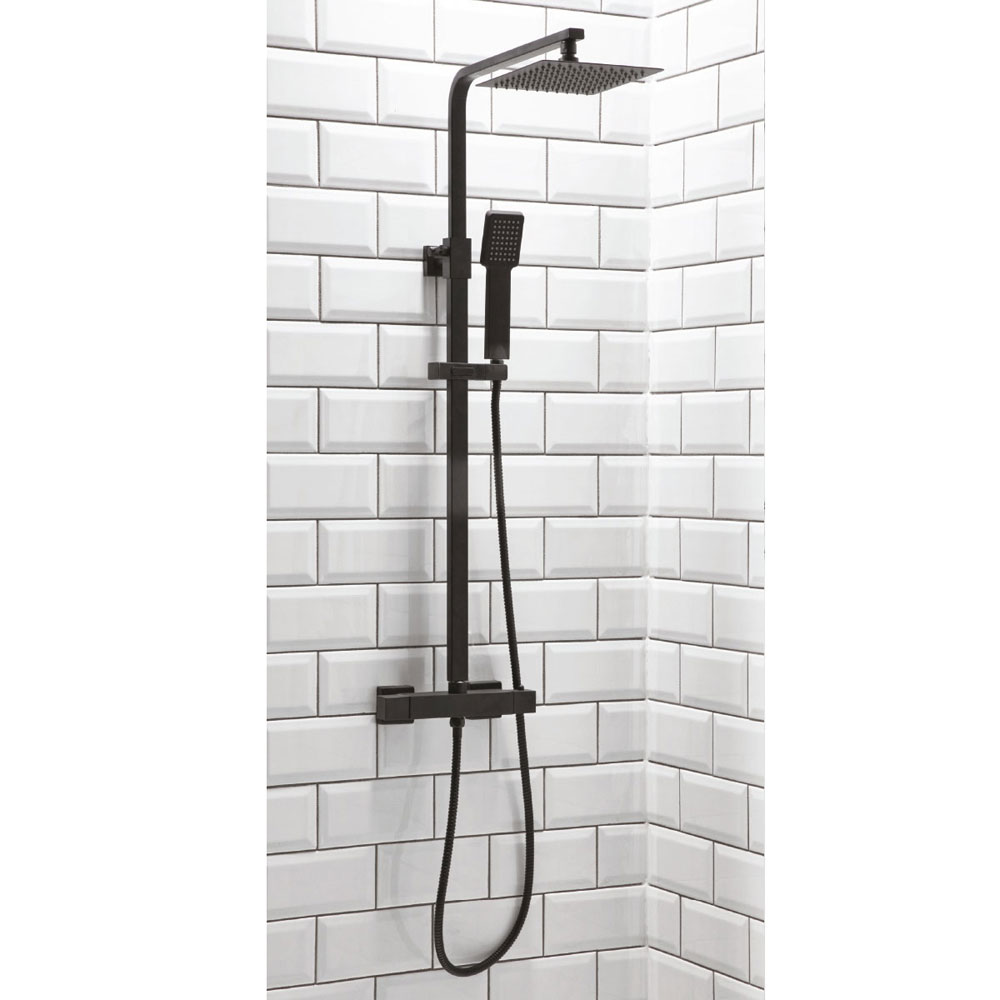

Elli Black Square Twin Head Rigid Riser Shower

Product Description

* 200mm Ultra thin solid metal fixed shower head

* Easy clean rubber nozzles on main shower head and headset

* Telescopic riser rail (adjustable after installlation)

* Chrome plated brass body thermostatic shower valve

* Adjustable handset holder

Specification

General Specification

Construction Material: Brass / Stainless Steel / Plastic
Installation Type: Exposed Bar Valve
Colour / Finish: Black

Tap / Shower specification

WRAS Approved: Yes
TMV Approved: Yes
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of Tap Holes Required: N/a
Handle Type: Square
Swivel Spout: N/a
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Tap Hole Diameter (mm): N/a
Tap Type Description: Exposed Bar Valve
Includes Waste: N/a
Valve / Cartridge Type: Thermostatic & Quarter Turn Cartridge
Cartridge Spare Code: 0

Flow Rates

0.2bar (l/min): 4
0.5bar (l/min): 8.4
1bar (l/min): 12.8
2bar (l/min): 18.1
3bar (l/min): 22.2

Showering specification

Anti-Scald: Yes
Shower Diverter Function: Yes
Number of Outlets: 2
Thermostatic Temperature Control: Yes
Cool Touch: No
Shower Handset Functions: 1
Minimum Working Pressure: 0.5
Maximum Working Pressure: 0
Shape: Square
Pipe Centres (mm): 150
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Adjustable: Yes
Adjustment (mm): 0
Handle Type: Square

Spares Codes

Diverter Spares: Thermostatic & Quarter Turn Cartridge
Thermostatic Cartridge Spares: 0

Product Transportation

Barcode: 5060500644284
Country of origin: CH
Commodity code: 8481809000

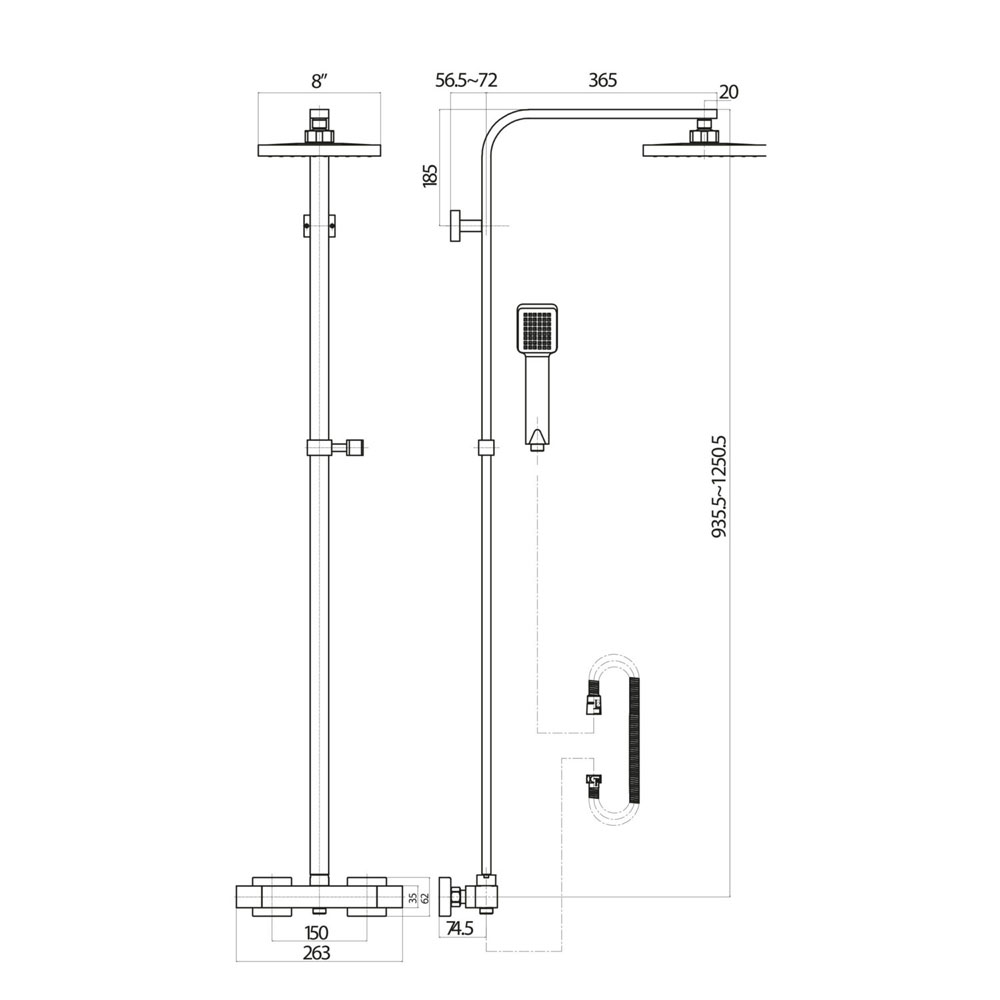

Product Measurements

Product Weight (KG): 3.258
Product Width (mm): 263
Product Height (mm): 860-1230
Product Depth (mm): 420
Product Length (mm): 0

Primary Packed Measurements

Packaged Weight: 3.7
Packed Length: 356
Packed Width: 120
Packed Height: 144

Packaging Weights

Card (kg): 0.455
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.006​

Compliance DOP

HBDOC042 , HBDOC043
