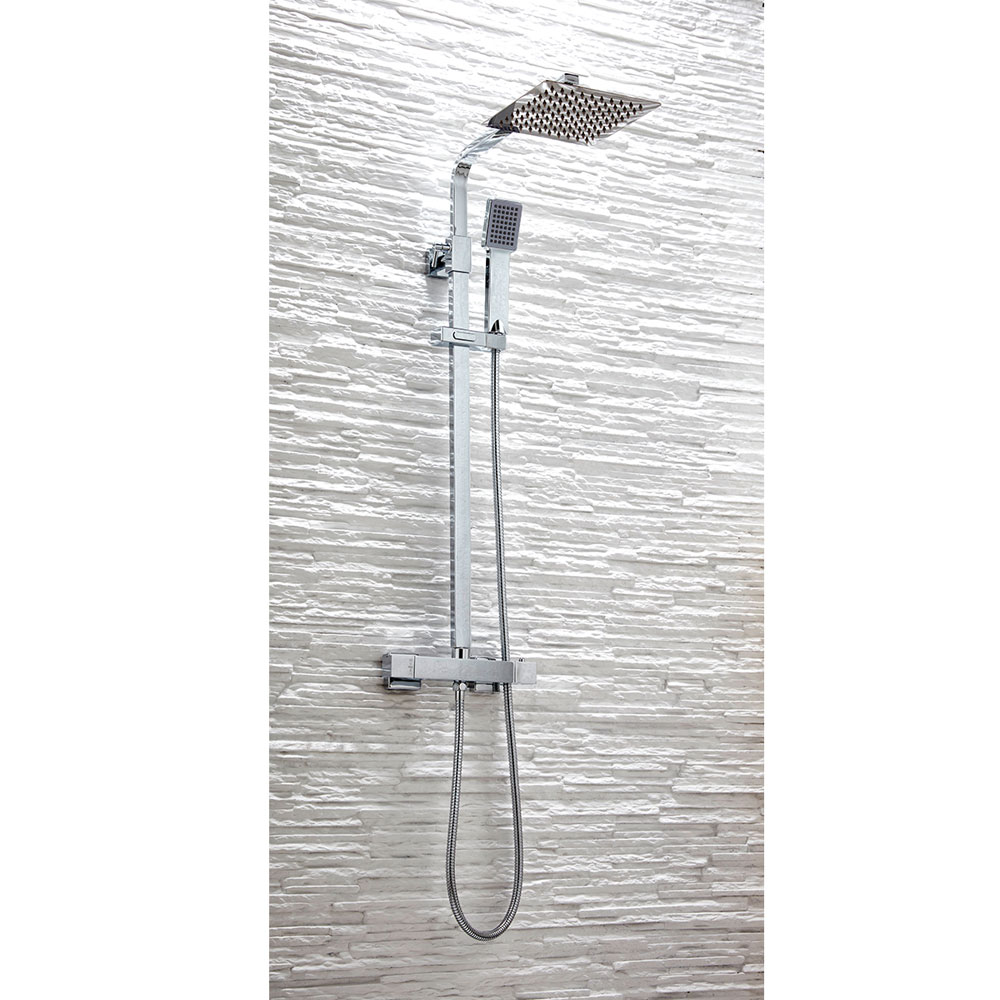

Elli Chrome Square Twin Head Rigid Riser Shower

Product Description

* 200mm Ultra thin solid metal fixed shower head

* Rubber easy clean soft rubber nozzles on main shower and handset

* Telescopic Riser Rail (adjustable after installation)

Specification

General Specification

Construction Material: Brass / Plastic / Stainless Steel
Installation Type: Wall Mounted
Colour / Finish: Chrome

Tap / Shower specification

WRAS Approved: Yes
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of Tap Holes Required: N/a
Handle Type: Square
Swivel Spout: N/a
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP
Tap Hole Diameter (mm): N/a
Tap Type Description: Exposed Bar Valve
Includes Waste: No
Valve / Cartridge Type: Thermostatic & Quarter Turn Cartridge
Cartridge Spare Code: LANSPARE22

Flow Rates

0.2bar (l/min): 3
0.5bar (l/min): 8.4
1bar (l/min): 12.8
2bar (l/min): 18.1
3bar (l/min): 22.2

Showering specification

Anti-Scald: Yes
Shower Diverter Function: Yes
Number of Outlets: 2
Thermostatic Temperature Control: Yes
Cool Touch: No
Shower Handset Functions: 1
Minimum Working Pressure: 0.5
Maximum Working Pressure: 5
Shape: Square
Pipe Centres (mm): 150
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Adjustable: Yes
Adjustment (mm): 935 - 1250
Handle Type: Square

Spares Codes

Diverter Spares: LANSPARE23
Thermostatic Cartridge Spares: LANSPARE22

Product Transportation

Barcode: 5060500644024
Country of origin: China
Commodity code: 8481809000

Product Measurements

Product Weight (KG): 3.4

Primary Packed Measurements

Packaged Weight: 4.55
Packed Length: 86
Packed Width: 37
Packed Height: 50​
