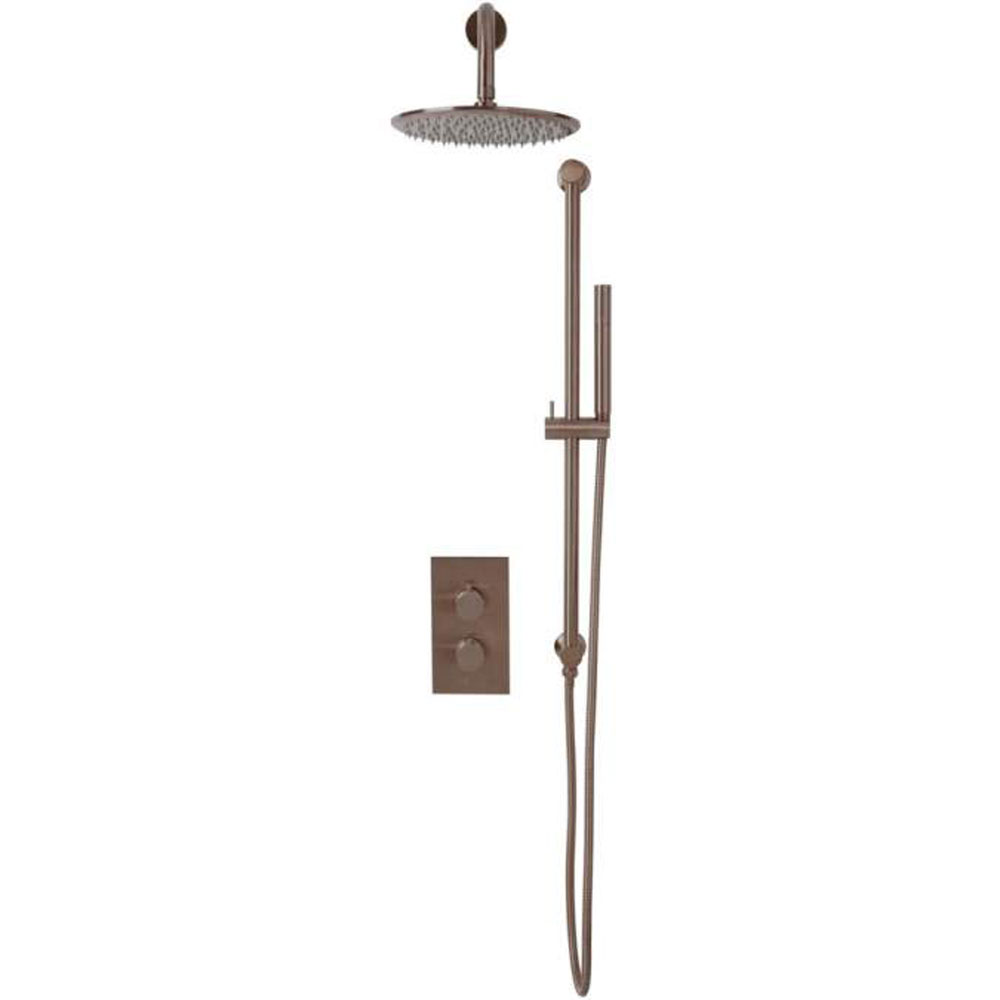

Kore Brushed Bronze Round Handle, Head & Handset Riser Kit

Product Description

Our on-trend brushed bronze round handle, head & handset riser kit delivers on function, style and quality for a look that encapsulates a modern elegance. Core is supplied with two handle options giving you the flexibility to change the overall look with a diamond cross hatch detail or a sleek smooth appearance.

Shower features:

Includes: overhead rainshower, removable handset, slide rail, concealed valve
Colour and finish: brushed bronze
Valve type: thermostatic
WRAS approved

Specification

General Specification:

Construction Material: Brass / Stainless Steel 304 Alloy
Installation Type: Wall Mounted
Colour / Finish: Brushed Brass

Tap / Shower Specification:

WRAS Approved: Yes
WRAS Expiry Date: 31/12/2027
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of Tap Holes Required: 0
Handle Type: Lever
Swivel Spout: N/a
Inlet Connection: 1/2 BSP
Outlet Connection: 1/2 BSP Handset
Tap Hole Diameter (mm): N/a
Tap Type Description: Concealed Thermostatic Mixer
Includes Waste: No
Valve / Cartridge Type: Thermostatic Cartridge
Cartridge Spare Code: N/a

Flow Rates:

0.2bar (l/min): 5.6
0.5bar (l/min): 8.8
1bar (l/min): 13.8
2bar (l/min): 20.8
3bar (l/min): 25.7

Product Transportation:

Barcode: 5060964935430
Country of Origin: China
Commodity Code: 7324900000

Product Measurements:

Product Weight (KG): 3.989

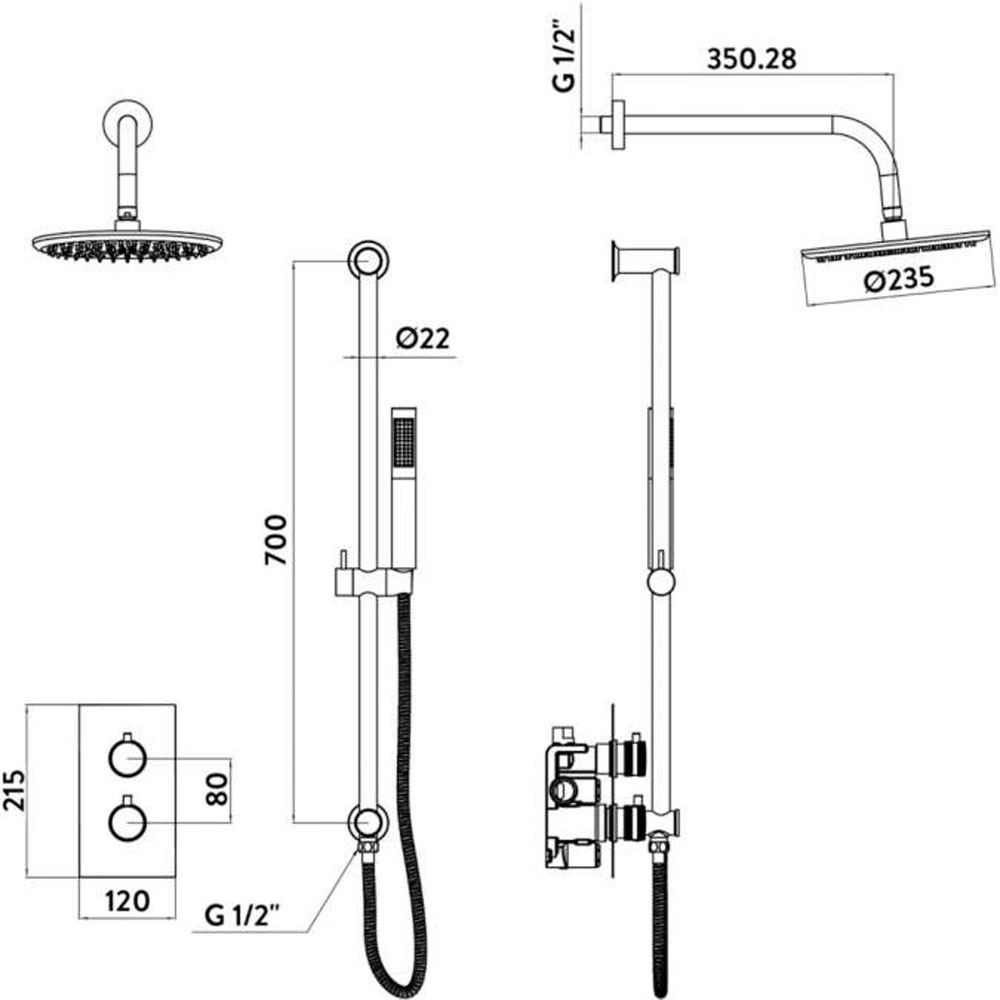

Product Dimension: See Line Drawing

Primary Packed Measurements:

Packaged Weight: 4.799
Packed Length: 360
Packed Width: 330
Packed Height: 175
