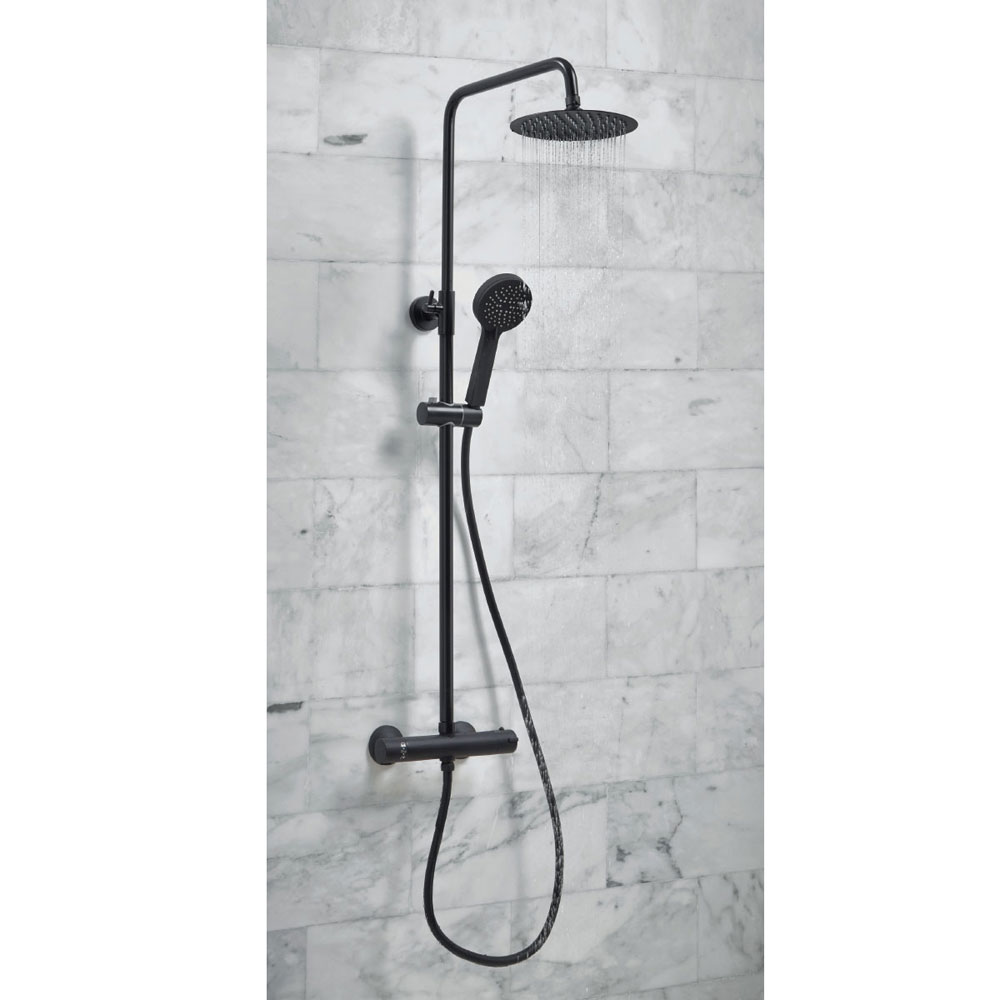

Mid Black Round Twin Head Rigid Riser Shower

Product Description

* 200mm Ultra thin solid metal fixed shower head

* Rubber easy clean soft rubber nozzles on main shower head and handset

* Telescopic riser rail (adjustable after installation)

* Fully thermostatic valve

* Brass thermostatic catridge

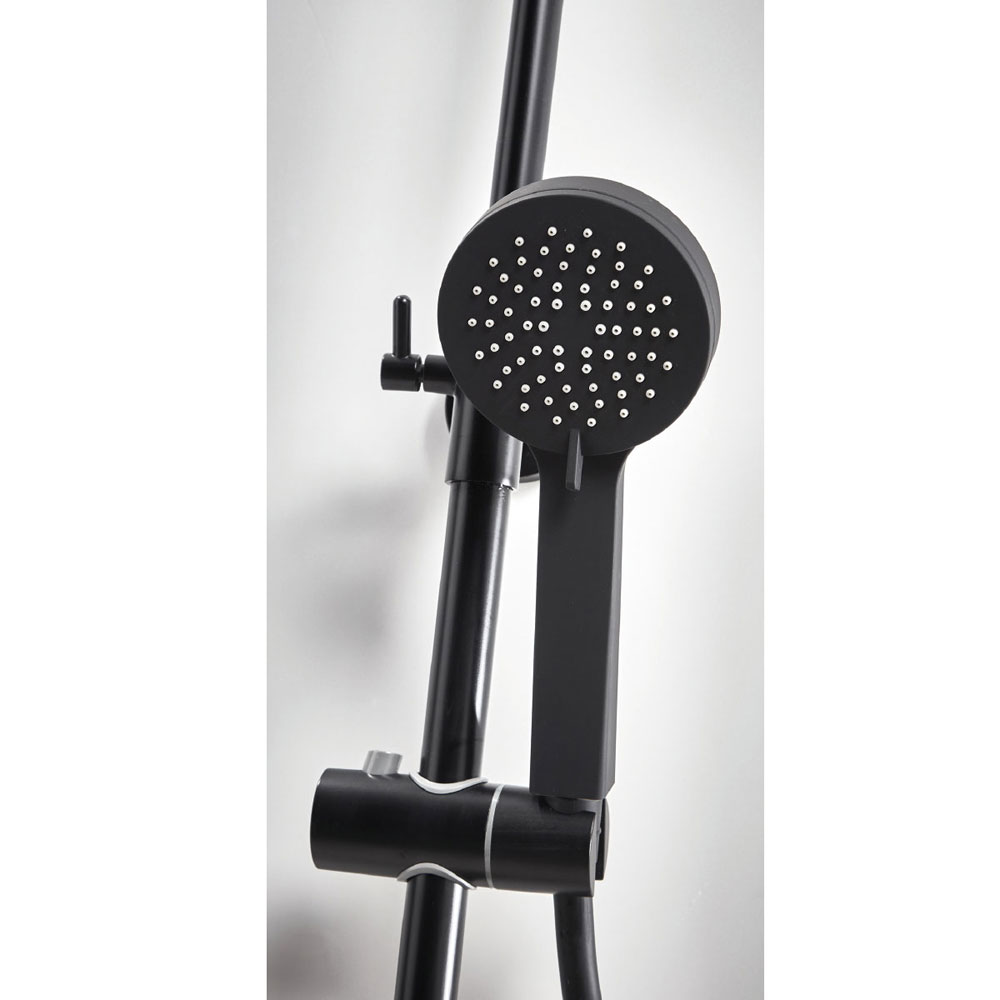

* Multi-function shower handset with height adjustable holder

Specification

General Specification

Construction Material: Brass / Stainless Steel / Plastic
Installation Type: Wall Mounted
Colour / Finish: Black

Tap / Shower specification

WRAS Approved: Yes
TMV Approved: Yes
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: 0
Number of Tap Holes Required: 0
Handle Type: 0
Swivel Spout: 0
Inlet Connection: 0
Outlet Connection: 0
Tap Hole Diameter (mm): 0
Tap Type Description: 0
Includes Waste: 0
Valve / Cartridge Type: 0
Cartridge Spare Code: 0

Flow Rates

0.2bar (l/min): 5.1
0.5bar (l/min): 9.2
1bar (l/min): 14
2bar (l/min): 20
3bar (l/min): 24.8

Showering specification

Anti-Scald: Yes
Shower Diverter Function: Yes
Number of Outlets: 2
Thermostatic Temperature Control: Yes
Cool Touch: No
Shower Handset Functions: 3
Minimum Working Pressure: 0.5
Maximum Working Pressure: 5
Shape: Round

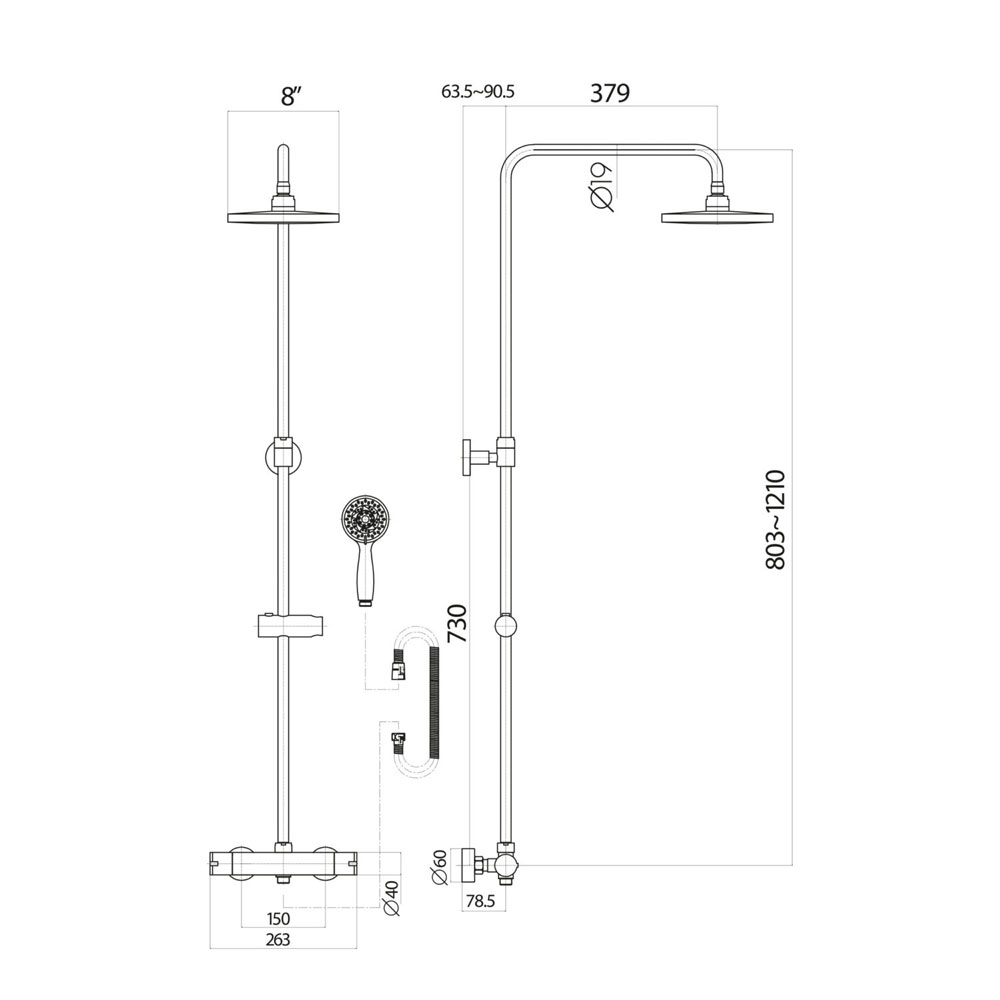

Pipe Centres (mm): 150
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP
Adjustable: Yes
Adjustment (mm): 803-1210
Handle Type: Round

Spares Codes

Diverter Spares: 0
Thermostatic Cartridge Spares: 0

Product Transportation

Barcode: 5060500644307
Country of origin: CH
Commodity code: 8481809000

Product Measurement’s

Product Weight (KG): 3.56
Product Width (mm): 263
Product Height (mm): 870-1200
Product Depth (mm): 407
Product Length (mm): 0

Primary Packed Measurements

Packaged Weight: 2.763
Packed Length: 31
Packed Width: 12
Packed Height: 14.4​

Compliance DOP

HBDOC042 , HBDOC043
