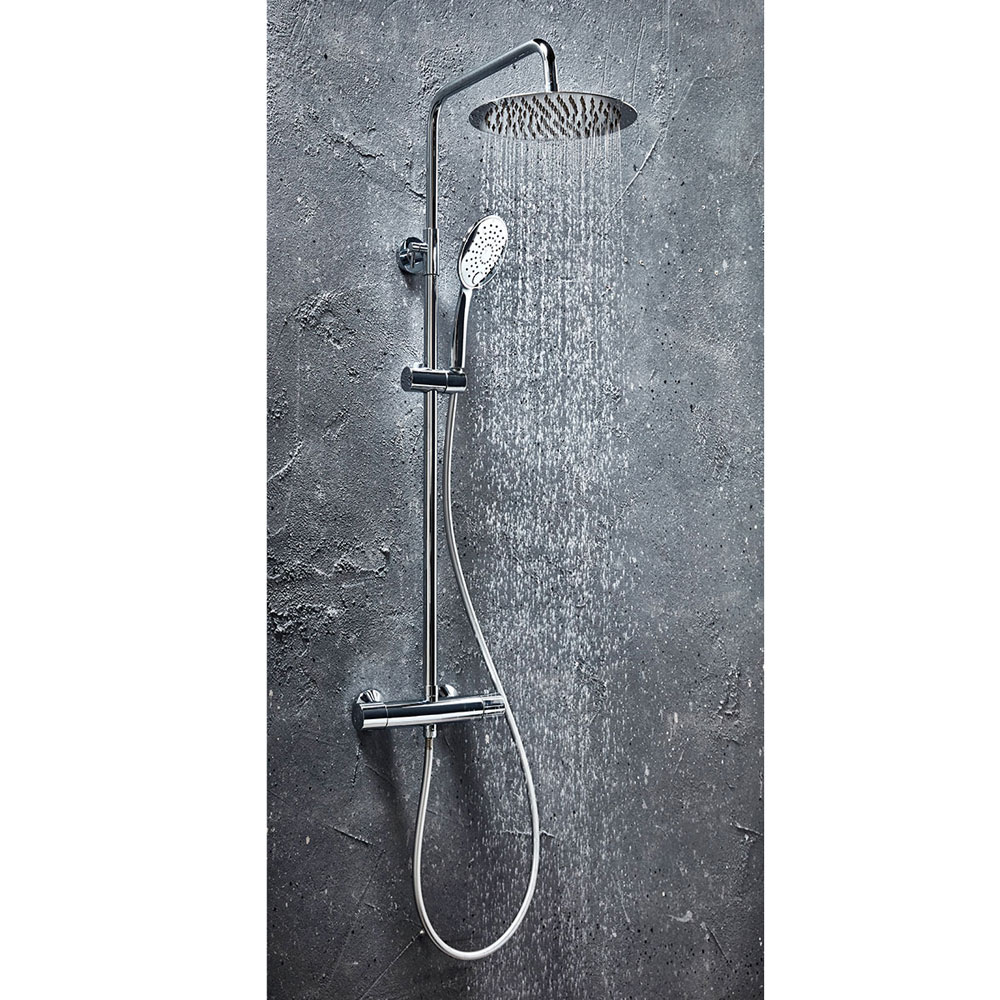

Round Cool Touch Twin Head Rigid Riser Shower

Product Description

* 250mm Ultra thin solid metal fixed shower head

* Rubber easy clean soft rubber nozzles on main shower head and handset

* Telescopic Riser Rail (adjustable after installation)

* Fully termostatic valve (cool touch)

* Brass thermostatic cartridge

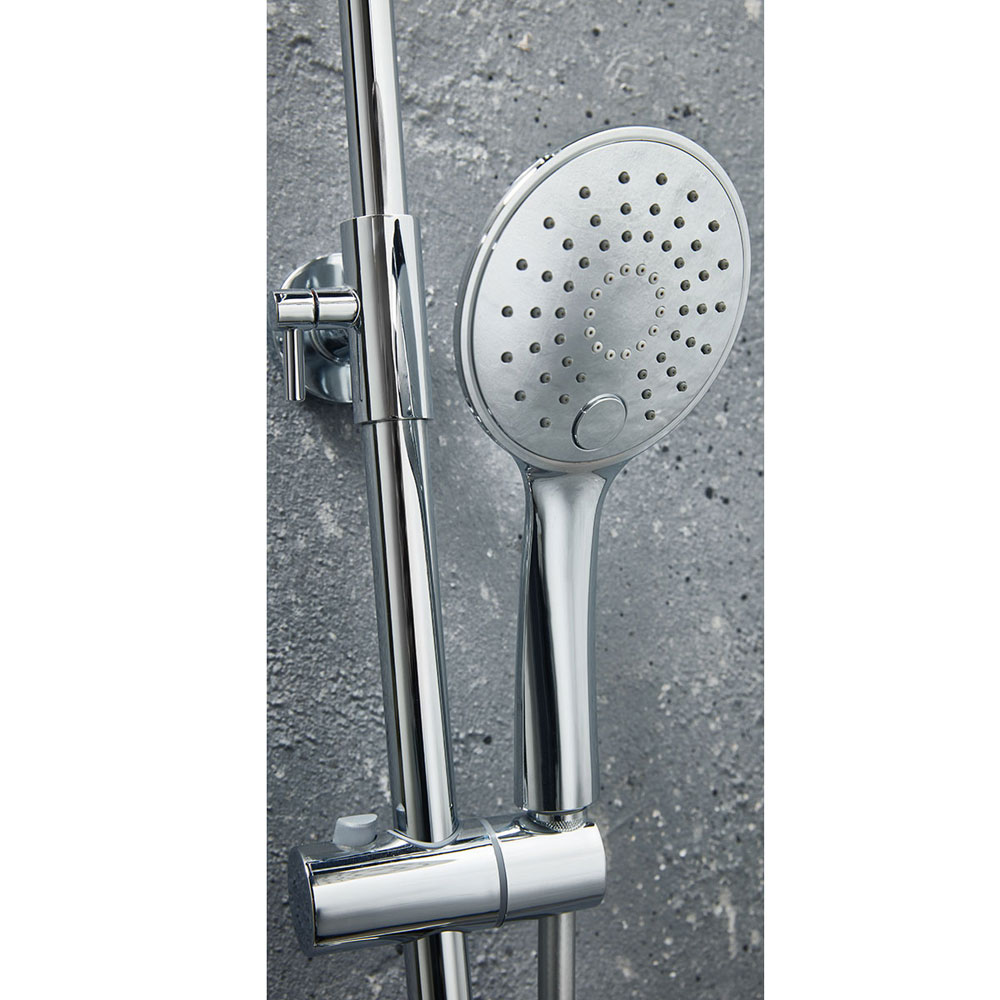

* Multi-function shower handset with height adjustable holder

Specification

General Specification
Construction Material: Brass / Plastic / Stainless Steel
Installation type: Wall Mounted
Colour / Finish: Chrome

Tap / Shower specification

WRAS Approved: No
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of tap holes required: N/a
Handle Type: Round
Swivel Spout: N/a
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Tap Hole Diameter (mm): N/a
Tap Type description: Exposed Bar Valve
Includes Waste: No
Valve / Cartridge Type: Thermostatic & Quarter Turn Cartridge
Cartridge Spare code: 0

Flow Rates

0.2bar (l/min): 2.9
0.5bar (l/min): 3.5
1bar (l/min): 12.5
2bar (l/min): 18.6
3bar (l/min): 23.4

Showering specification

Anti-Scald: Yes
Shower Diverter function: Yes
Number of outlets: 2
Thermostatic Temperature control: Yes
Cool Touch: Yes
Shower Handset functions: 2
Minimum Working Pressure: 0.5
Maximum Working Pressure: 5
Shape: Round
Pipe Centres (mm): 150
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Adjustable: Yes
Adjustment (mm): 870-1200
Handle Type: Round

Spares Codes

Diverter Spares: XUSPARE005
Thermostatic Cartridge Spares: XUSPARE005

Product Transportation
Barcode: 5060500644628
Country of origin: CH
Commodity code: 8481809000

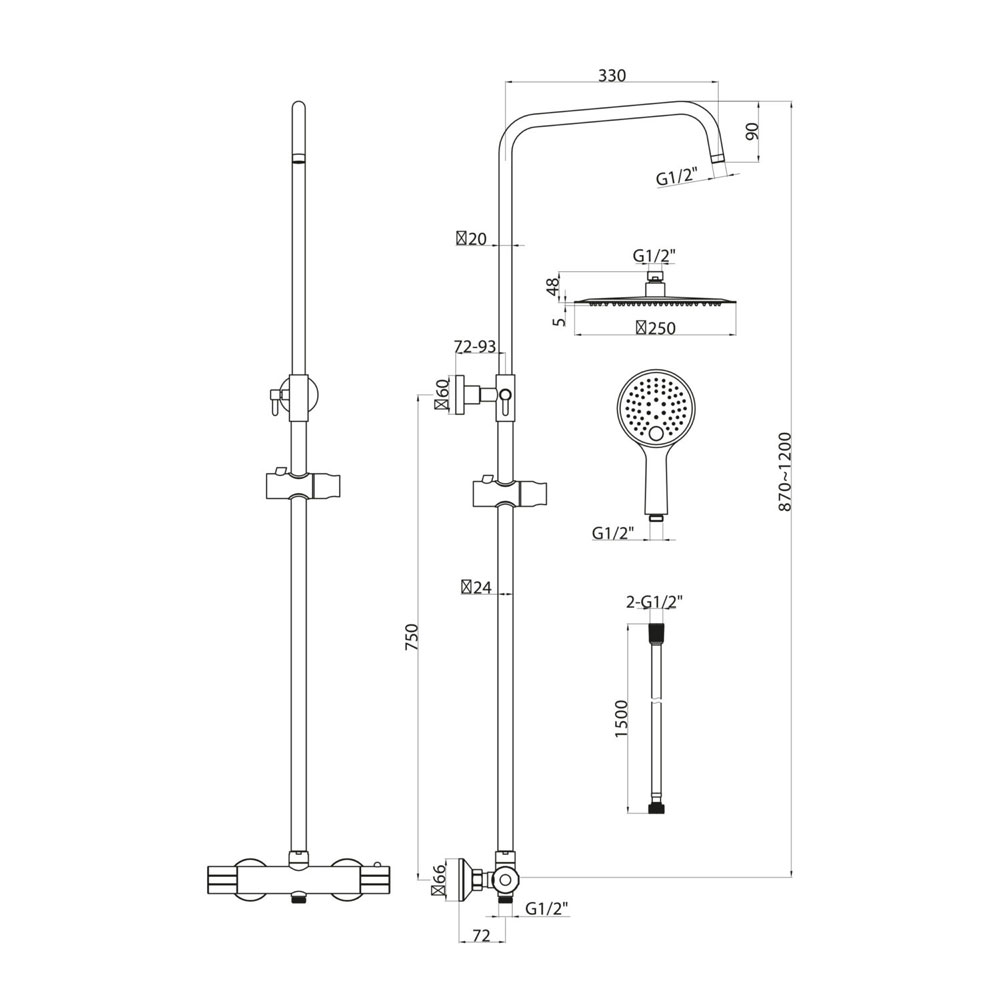

Product Measurements

Product Weight (KG): 4.9
Product Width (mm): 250
Product Height (mm): 870-1200
Product Depth (mm): 330
Product Length (mm): 0

Primary Packed Measurements

Packaged Weight: 5.4
Packed Length: 96
Packed Width: 23.8
Packed Height: 19

Compliance DOP
HBDOC074 & HBDOC075
