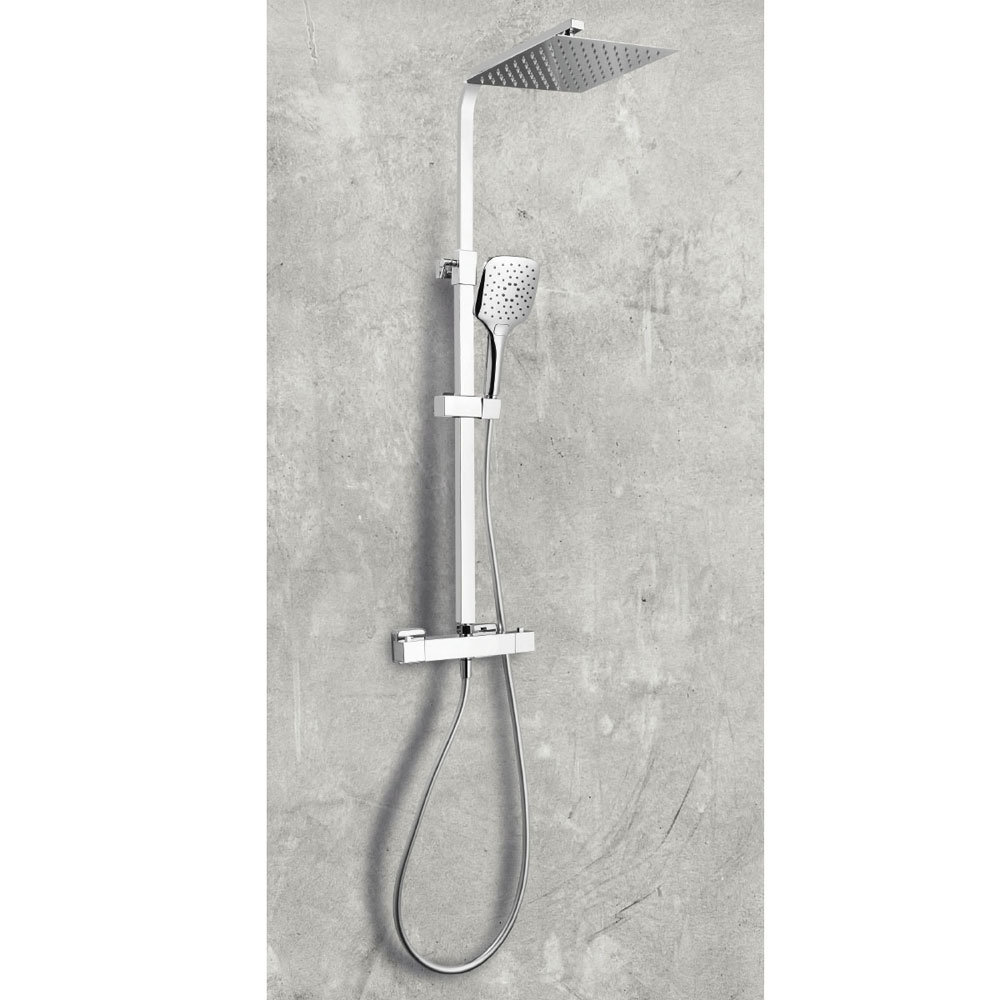

Square Cool Touch Twin Head Rigid Riser Shower

Product Description

* 250mm Ultra thin solid metal fixed shower head

* Rubber easy clean soft rubber nozzles on main shower head and handset

* Telescopic Riser Rail (adjustable after installation)

* Fully termostatic valve (cool touch)

* Brass thermostatic cartridge

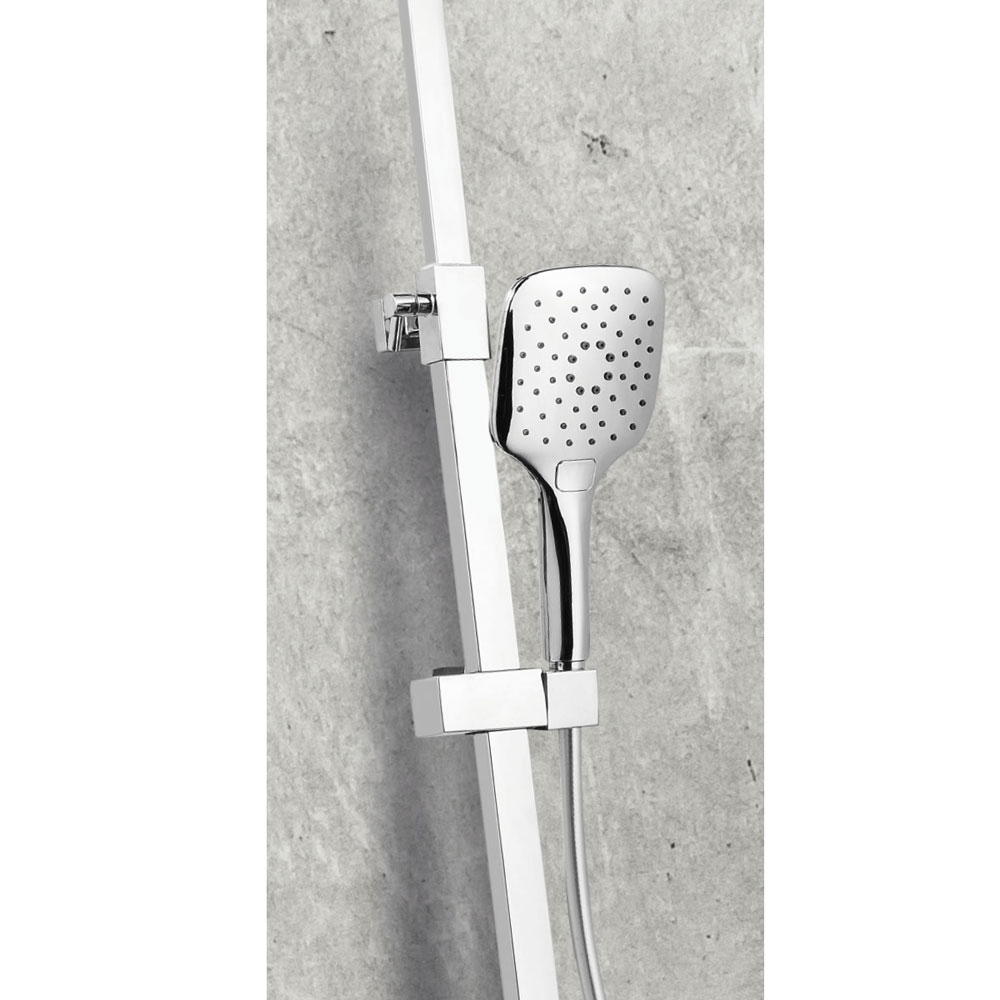

* Multi-function shower handset with height adjustable holder

Specification

General Specification

Construction Material: Brass / Plastic / Stainless Steel
Installation Type: Wall Mounted
Colour / Finish: Chrome

Tap / Shower specification

WRAS Approved: No
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of Tap Holes Required: N/a
Handle Type: 0
Swivel Spout: 0
Inlet Connection: 0
Outlet Connection: 0
Tap Hole Diameter (mm): N/a
Tap Type Description: Exposed Bar Valve
Includes Waste: No
Valve / Cartridge Type: Thermostatic & Quarter Turn Cartridge
Cartridge Spare Code: 0

Flow Rates

0.2bar (l/min): 3.2
0.5bar (l/min): 9.2
1bar (l/min): 13.5
2bar (l/min): 19.8
3bar (l/min): 25

Showering specification

Anti-Scald: Yes
Shower Diverter Function: Yes
Number of Outlets: 2
Thermostatic Temperature Control: Yes
Cool Touch: Yes
Shower Handset Functions: 2
Minimum Working Pressure: 0.5
Maximum Working Pressure: 5
Shape: Square
Pipe Centres (mm): 150
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP Handset
Adjustable: Yes
Adjustment (mm): 0
Handle Type: Square

Spares Codes

Diverter Spares: 0
Thermostatic Cartridge Spares: 0

Product Transportation

Barcode: 5060500644048
Country of origin: CH
Commodity code: 8481809000

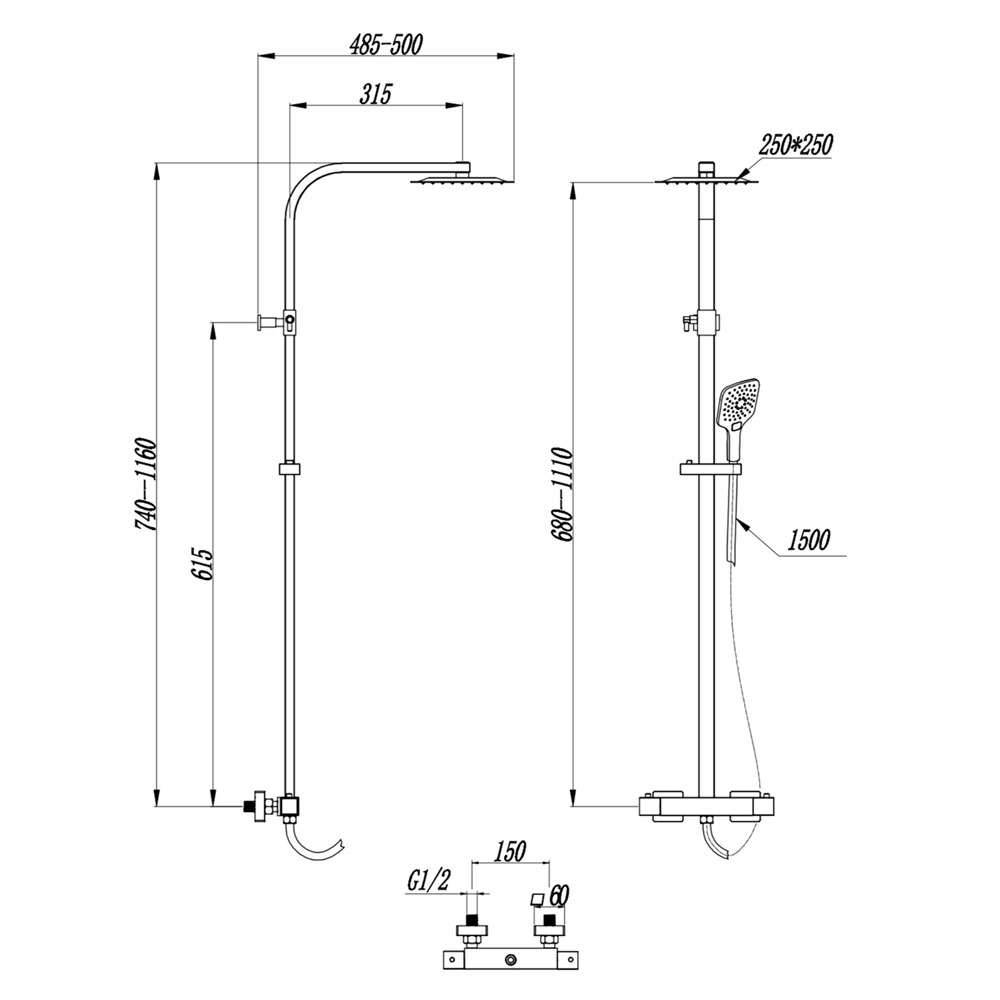

Product Measurements

Product Weight (KG): 4
Product Width (mm): 250
Product Height (mm): 870-1200
Product Depth (mm): 330
Product Length (mm): 0

Primary Packed Measurements

Packaged Weight: 5.4
Packed Length: 96
Packed Width: 23.8
Packed Height: 19

Packaging Weights

Card (kg): 0.5
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.05

Compliance DOP

HBDOC074 & HBDOC075
