Kore Brushed Brass Bath Filler

Product Description

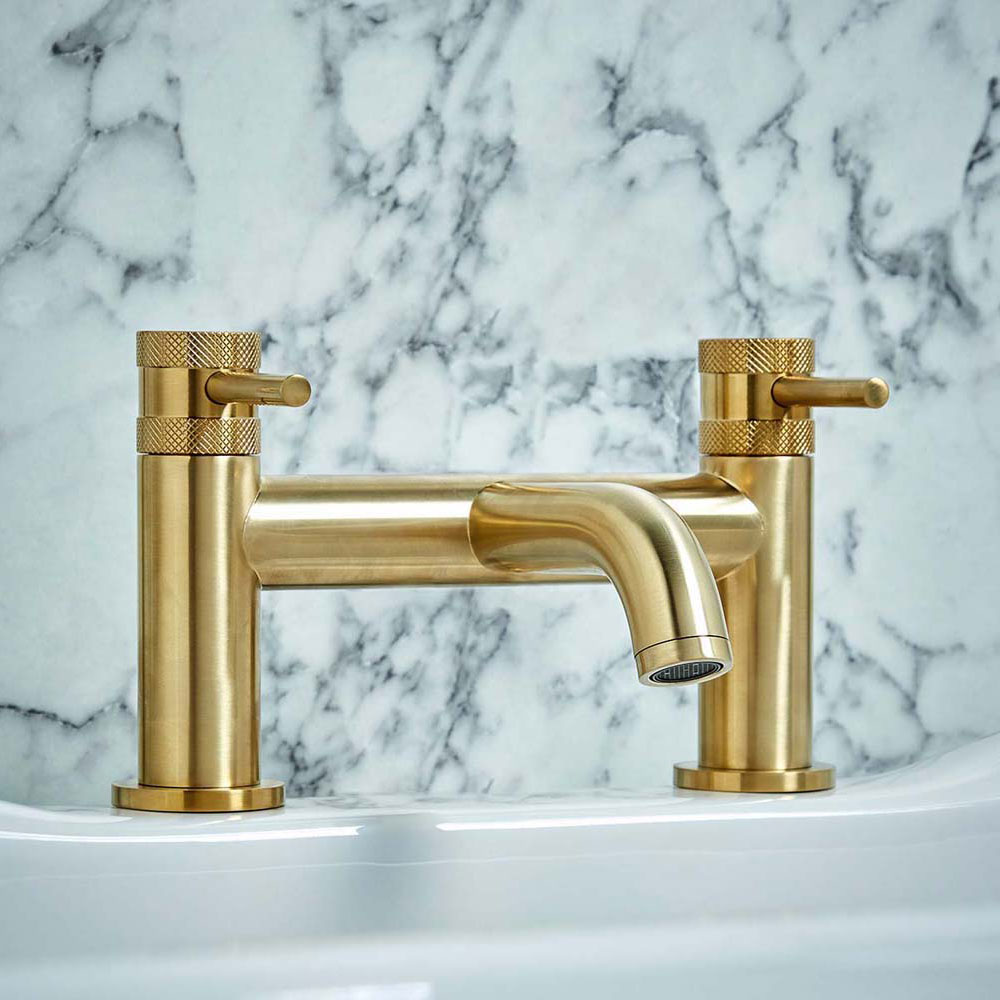

Our on-trend Kore brushed brass bath filler delivers on function, style and quality for a look that encapsulates a modern elegance. Kore is supplied with two handle options giving you the flexibility to change the overall look with a diamond cross hatch detail or a sleek smooth appearance.

Specification

General Specification

Construction Material: Brass
Installation Type: Deck Mounted
Colour / Finish: Matt Black

Tap / Shower Specification

WRAS Approved: Yes
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of Tap Holes Required: 2
Handle Type: Lever
Swivel Spout: No
Inlet Connection: 3/4 BSP
Outlet Connection: N/a
Tap Hole Diameter (mm): 32
Tap Type Description: Manual Mixer
Includes Waste: No
Valve / Cartridge Type: Quarter Turn Cartridge
Cartridge Spare Code: N/a

Flow Rates

0.2bar (l/min): 4
0.5bar (l/min): 7
1bar (l/min): 9.8
2bar (l/min): 13.6
3bar (l/min): 16.7

Product Transportation

Barcode: 5060766124506
Country of Origin: CH
Commodity Code: 8481809000

Product Measurements

Product Weight (KG): 1.88

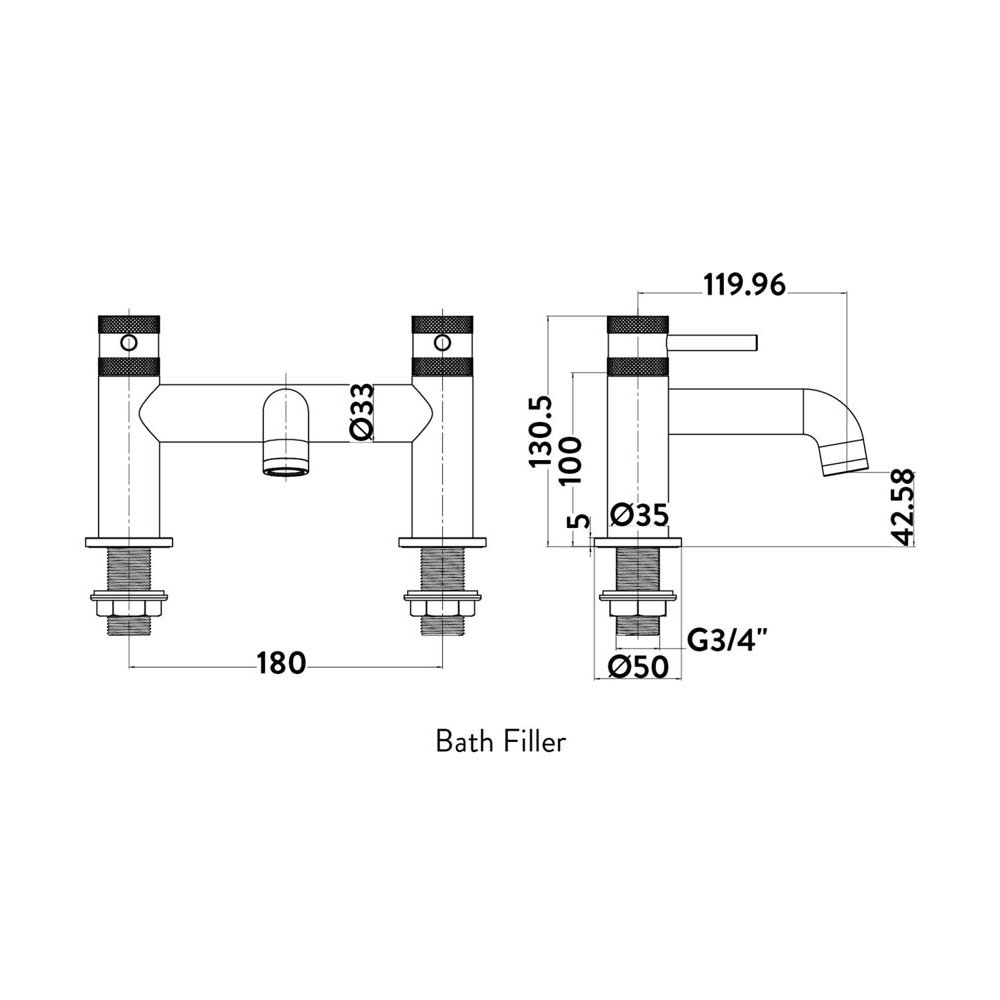

Product Width (mm): See Line-drawing
Product Height (mm):
Product Depth (mm):
Product Length (mm):

Primary Packed Measurements

Packaged Weight: 2.75
Packed Length: 230
Packed Width: 289
Packed Height: 210
