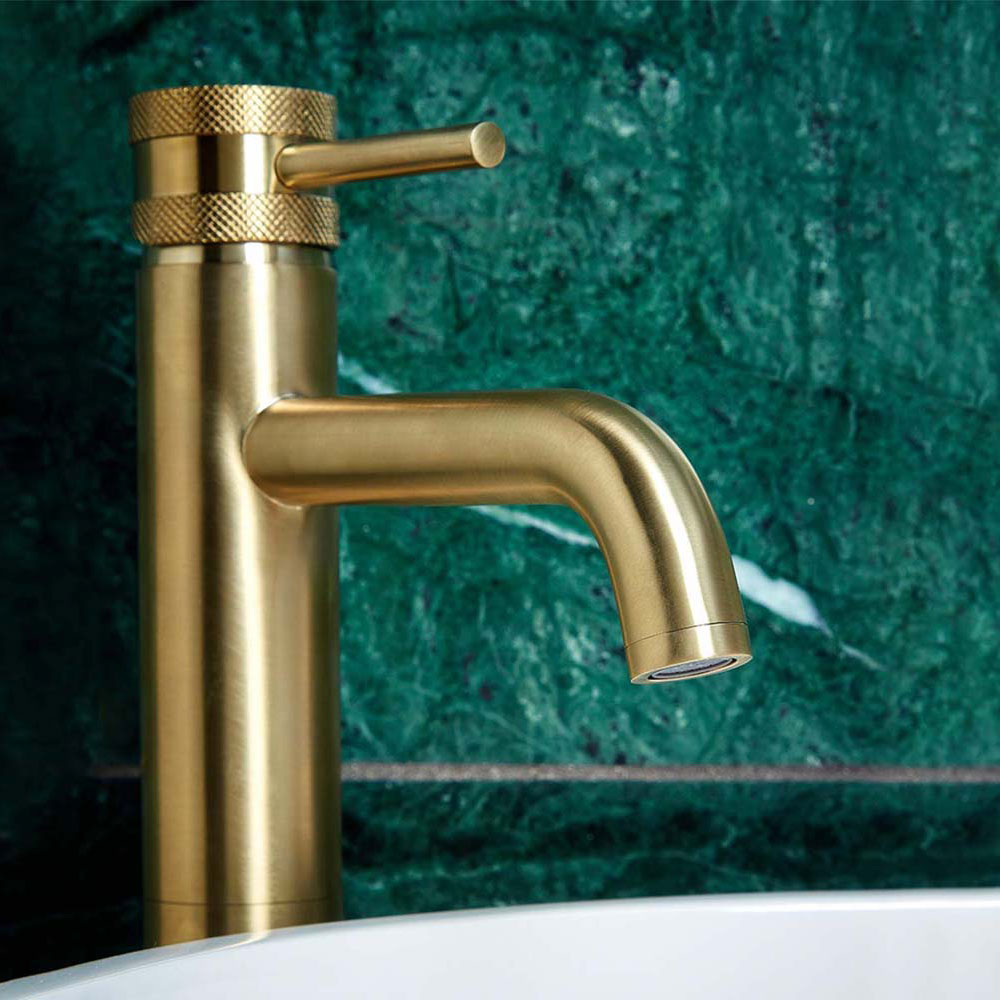

Kore Brushed Brass Tall Mono Basin Mixer

Product Description

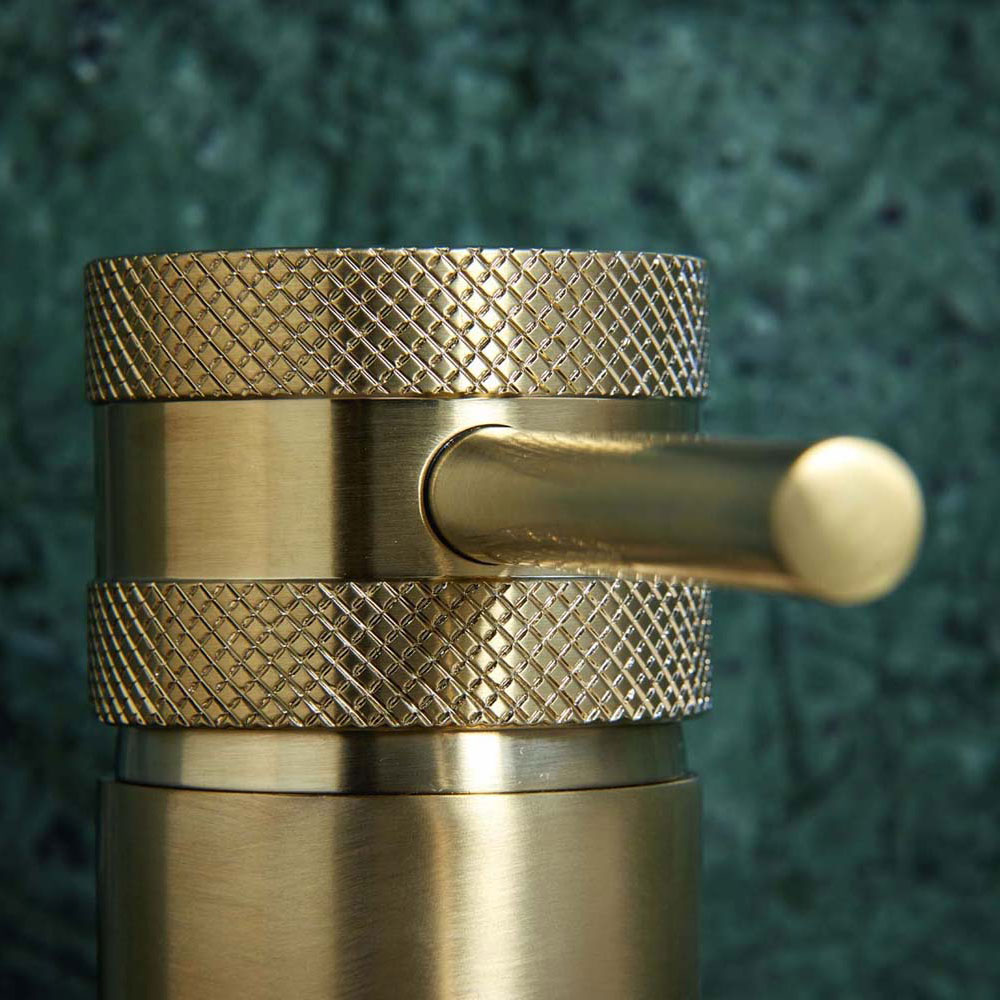

Our on-trend Kore brushed brass tall mono basin mixer delivers on function, style and quality for a look that encapsulates a modern elegance. Kore is supplied with two handle options giving you the flexibility to change the overall look with a diamond cross hatch detail or a sleek smooth appearance.

Specification

General Specification

Construction Material: Brass
Installation Type: Deck Mounted
Colour / Finish: Matt Black

Tap / Shower Specification

WRAS Approved: Yes
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: Yes
Number of Tap Holes Required: 1
Handle Type: Lever
Swivel Spout: No
Inlet Connection: 1/2" M10
Outlet Connection: N/a
Tap Hole Diameter (mm): 35
Tap Type Description: Mono Mixer
Includes Waste: No
Valve / Cartridge Type: 35mm Cartridge
Cartridge Spare Code: N/a

Flow Rates

0.2bar (l/min): 2.7
0.5bar (l/min): 5
1bar (l/min): 6.6
2bar (l/min): 9.2
3bar (l/min): 11.4

Product Transportation

Barcode: 5060766124476
Country of Origin: CH
Commodity Code: 8481809000

Product Measurements

Product Weight (KG): 1.5
Product Width (mm): See Line-drawing
Product Height (mm): 0
Product Depth (mm): 0
Product Length (mm): 0

Primary Packed Measurements

Packaged Weight: 2.15
Packed Length: 390
Packed Width: 200
Packed Height: 60
