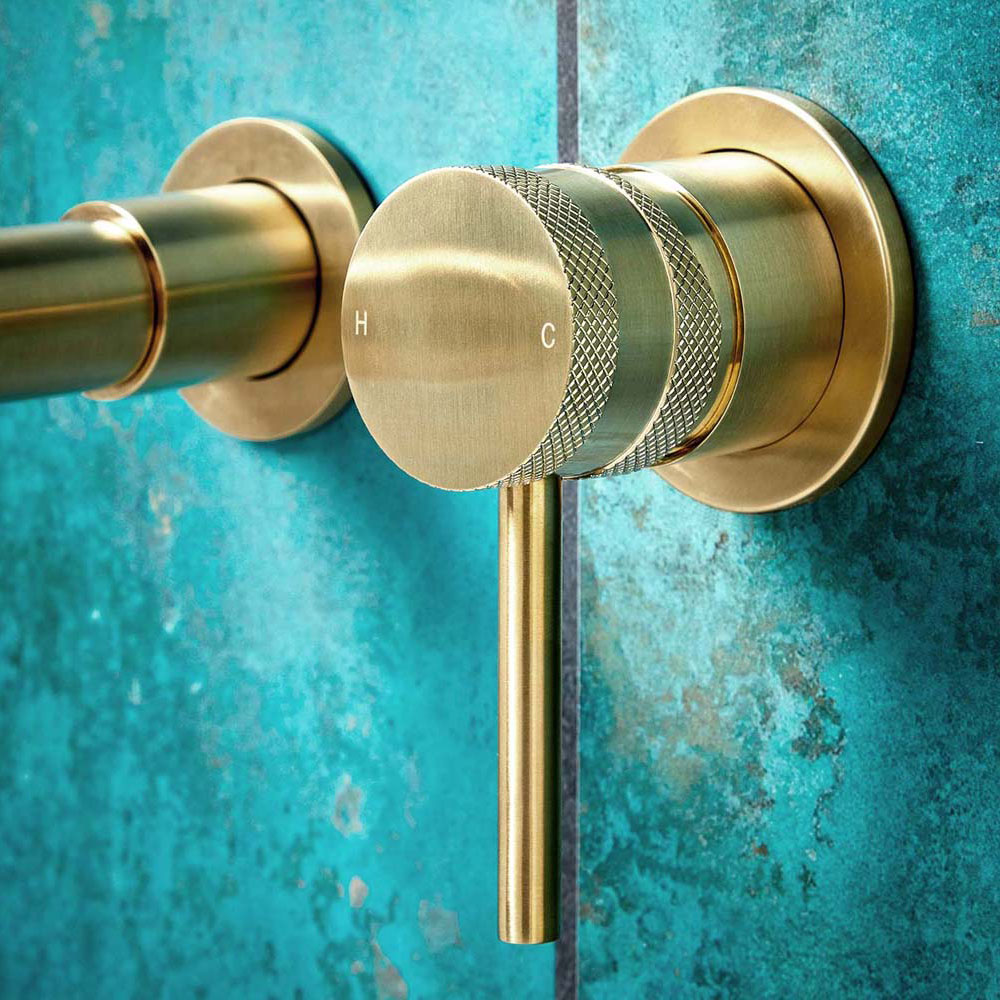

Kore Brushed Brass Wall Mounted Basin / Bath Mixer

Product Description

Our on-trend Kore brushed brass wall mounted basin mixer delivers on function, style and quality for a look that encapsulates a modern elegance. Kore is supplied with two handle options giving you the flexibility to change the overall look with a diamond cross hatch detail or a sleek smooth appearance.

Specification

General Specification

Construction Material: Brass
Installation Type: Wall Mounted
Colour / Finish: Brushed Brass

Tap / Shower Specification

WRAS Approved: Yes
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of Tap Holes Required: 0
Handle Type: Lever
Swivel Spout: No
Inlet Connection: 1/2 BSP
Outlet Connection: N/a
Tap Hole Diameter (mm): N/a
Tap Type Description: Mono Mixer
Includes Waste: No
Valve / Cartridge Type: 35mm Cartridge
Cartridge Spare Code: N/a

Flow Rates

0.2bar (l/min): 3.8
0.5bar (l/min): 6.3
1bar (l/min): 8.3
2bar (l/min): 11.8
3bar (l/min): 14.3

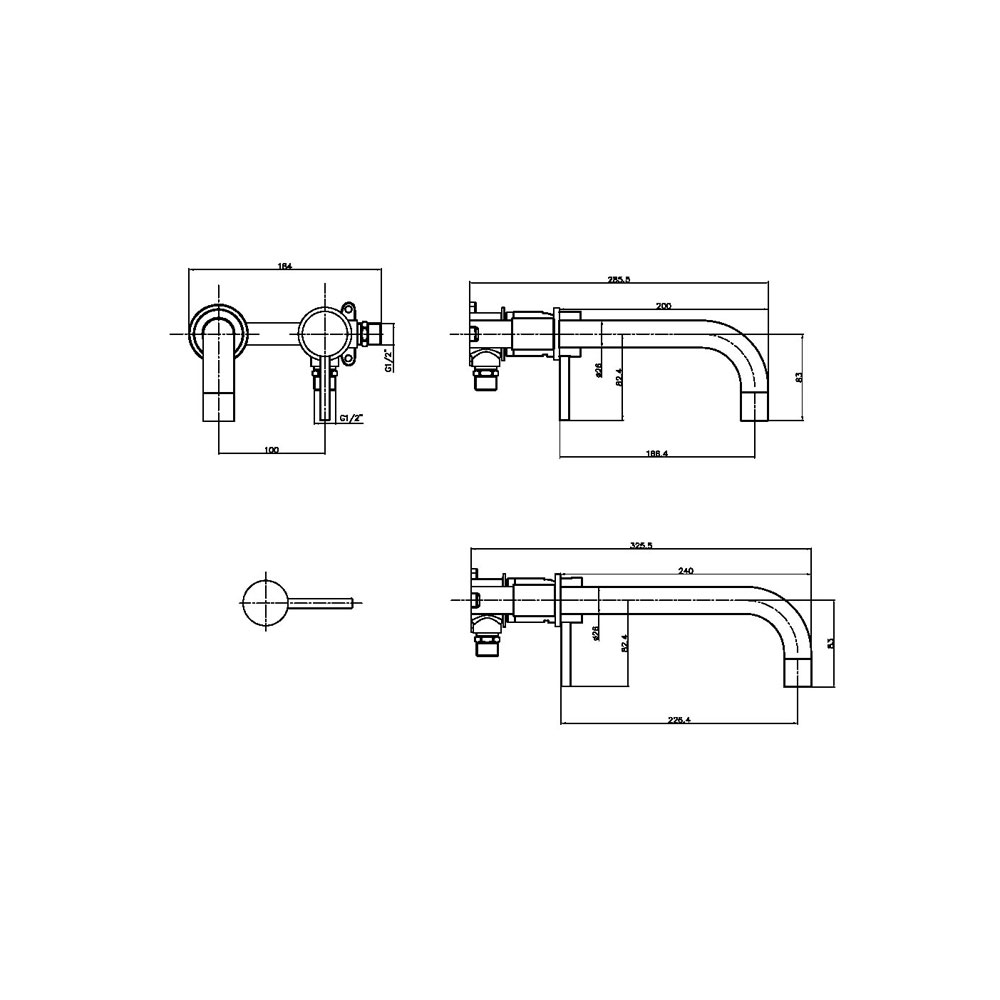

Product Measurements

Product Weight (KG): 1.357
Product Width (mm): 100
Product Height (mm): 84
Product Depth (mm): 182

Primary Packed Measurements

Packaged Weight: 2.7
Packed Length: 265
Packed Width: 320
Packed Height: 160

Compliance DOP: HBDOC041
